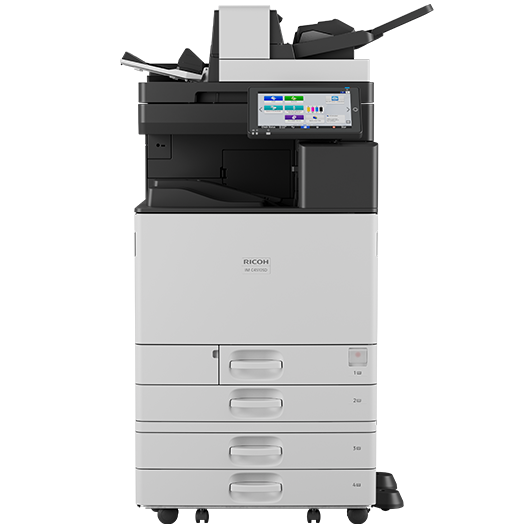

IM C4510SD Color Laser Multifunction Printer

Easily print, scan, and secure your information all from one device

Prints up to 45 ppm, copy, scan, fax (optional)
1200 x 1200 dpi max print resolution
Paper capacity up to 4,850 pages
Drive productivity with the help of intelligent support

| Brochure | Drivers | Request a Quote

Easily print, scan, and secure your information all from one device

Engineered to thrive in today's digital world, the RICOH IM C4510SD is a powerhouse. Featuring a professional production-style document feeder, this color laser multifunction printer enhances productivity and safeguards your data while digitizing documents in a heartbeat. High-quality color output with crisp 1200 x 1200 dpi resolution is sure to impress and quick 45 ppm print speed keeps your deadlines on track.

Make the switch to digital documents with ease

The RICOH IM C4510SD production scanner makes it easy to go digital and embrace the modern work environment. Equipped with a 300-sheet SPDF, its quick scanning speeds of 200 ipm turn paper documents into digital files in no time. With a powerful automatic document orientation and automatic skew correction, you can scan effortlessly without manual intervention.

Stay productive from your mobile device

With the free RICOH Smart Device Connector App, you can work just as efficiently from your desk as at the device. The Smart Device Connector App securely connects to your device for functions like printing, scanning, copying, and sharing documents by operating the panel straight from your smartphone or tablet. It's fast, easy and keeps your team productive no matter where they are.

Add features and apps, as needed

As requirements change, you want an MFP that keeps up. The scalable IM C4510SD features RICOH Always Current Technology, enabling you to activate desired features and download applications and upgrades any time from the intuitive, user-friendly control panel — without technical support.

Design stunning marketing collateral in-house

Save time, money and experience faster turnaround times by getting more done in-house with the IM C4510SD's flexible media options. With the help of optional paper feed units, including 2 x 550 sheet, 1,650 sheet LCIT, and 2,000 sheet side LCIT, your device keeps producing without the need to add more paper and disrupt your workflow. Generate marketing collateral like brochures, booklets, trifolds, newsletters, and more with a professional finish.

Get instant support from Ricoh experts

We'll partner with you to help maximize the potential of your IM C4510SD and support your businesses strategic goals and needs. Our RemoteConnect Support solution allows Ricoh specialists to make quick fixes so you never have to worry about downtime, while in-house IT managers are able to access the Smart Operation Panel and help users troubleshoot in real-time, so you can focus on what's important for your business.

Designed to minimize environmental impact

At Ricoh, we're committed to environmental change and helping you achieve your sustainability targets. The ENERGY STAR™ certified and EPEAT® Gold rated* IM C4510SD's features a sustainable design and packaging, while advanced scanning capabilities promote digital workflows, reducing paper waste and contributing to a greener future.
*EPEAT Gold rating is applicable only in the USA.

Need more information?

Learn more about the RICOH IM C4510SD Color Laser Multifunction Printer and how it may fit your business.

General Specifications

Configuration:
Console
Printing Process:
4-Drum Method
Color/B&W:
Color
Output Speed Copy/Print:
45 ppm B&W & FC (LTR)
First Page Out Time:
3.3 seconds B&W|5.2 seconds Color
Warm Up Time:
24 seconds
Resolution:
600 dpi
System Memory:
8 GB (4 GB RAM Mainframe + 4 GB RAM Panel)
Maximum Copy Quantity:
Up to 999 copies
Duplexing:
Automatic (Standard)
Document Feeder Type:
Single Pass Document Feeder (SPDF)
Single Pass Document Feeder SPDF:
300 sheets
Zoom Range:
25% - 400% in 1% increments
Supported Paper Sizes:
1st Paper Tray: 8.5" x 11" (A4)
2nd Paper Tray: 5.5" x 8" - 12" x 18" (A6-A3, B4-B6), Envelopes
Bypass: Up to 12" x 18", Envelopes
Custom Sizes: Width: 3.5" - 12.6" (90 - 320 mm), Length: 5.8" - 49.6" (148 - 1260 mm)
Supported Paper Weights:
Standard Trays: 16 - 80 lb./166 lb. Index (60 - 300 g/m2)
Bypass Tray: 14 - 80 lb./166 lb. Index (52 - 300 g/m2)
Duplex Unit: 14 - 45lb./142 lb. Index (52 - 169 g/m2)
Supported Paper Types:
Plain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-printed, Coated, Envelope, Label, Gloss
Standard Paper Capacity:
1,200 sheets (2 x 550 sheets + 100-Sheet Bypass Tray)
Maximum Paper Capacity:
4,850 sheets (w/Tandem LCT + Side LCT)
Standard Output Capacity:
500 sheets 8.5" x 11" (A4) or smaller; 250 sheets (B4) or larger
Maximum Output Capacity:
3,625 sheets
Maximum Monthly Volume:
50000
Power Source:
120V - 127V, 60Hz
Typical Electricity Consumption TEC:
0.45 kWh/week|TEC value is measured based on the ENERGY STAR Ver.3.0 test method.
Power Consumption:
Less than 1,584 W; Sleep Mode: 0.3W
EPEAT Status:
Gold
Dimensions (WxDxH):
23.1" x 27.6" x 40.6” (587 x 701 x 1,031 mm)
Weight:
227.1 lbs (103 kg)

Printer Specifications

Processor Speed:
Intel Apollo Lake 1.6 GHz
Interfaces:
Standard: Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B
Option: Wireless LAN (IEEE 802.11a/b/g/n/ac)
Network Protocol:
TCP/IP (IPv4, IPv6)
Supported Operating Systems:
Windows® 8.1 (32/64bit), Windows® 10 (32/64bit), Windows® 11, Server2016, Server2019, Server2022, Server2025; Citrix XenApp 7.15 LTSR, VirtualApps/Desktops 2012 and later MacOS 10.15 and later Unix: Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linu
Device Management Utilities:
Web Image Monitor, @Remote
Printer Languages:
Standard: PCL5c, PCL6, PostScript®3™ Emulation, PDF Direct Print Emulation
Optional: Genuine Adobe® PostScript®3™, Adobe® PDF Direct Print
Font Support:
Standard: PCL/PS 3 Emulation: 80 Roman fonts + 13 International fonts|Optional: Genuine Adobe® PostScript®3™: 136 Roman fonts
Printer Resolution:
Up to 1200 x 1200 dpi
Mobile Printing Support:
Apple AirPrint™, Mopria, Ricoh Smart Device Connector
Security Features:
DataOverwriteSecurity System (DOSS) with optional HDD, SSD Encryption, User Codes, SNMP v3 Support, Encryption, Locked Print, User Authentication, 802.1x Wired Authentication, Quota Setting/Account Limit, Digitally Signed PDF, and more

Scanner Specifications

Scanning Speed B&W/Full Color:
100 ipm (simplex)/200 ipm (duplex)
Scanning Resolution:
Up to 600 dpi optical
Scan Area:
Up to 11" x 17" (297 - 432 mm)
File Formats:
Single Page: TIFF, JPEG, PDF, PDF/A, High Compression PDF, encryption PDF, OCR*
Multi Page: TIFF, PDF (Default), PDF/A, High Compression PDF, encryption PDF, OCR*
Scan Modes:
E-mail, Folder, USB, FTP
Footnotes:
*Requires optional OCR Unit Type M52

DOSS Specifications

Maximum Stored Capacity:
3000
Maximum Page Capacity:
9000
Maximum No. of Folders:
200

Fax Specifications

Standard/Optional Fax:
Optional
Fax Type:
ITU-T (CCITT) G3, maximum 3 lines
Circuit:
PSTN, PBX
Fax Resolution:
Standard: 8 x 3.85 line/mm, 200 x 100 dpi
Optional: 16 x 15.4 line/mm, 400 x 400 dpi
Compression Method:
MH, MR, MMR, JBIG
Fax Scanning Speed:
2.4 seconds (Letter)
Fax Modem Speed:
33.6 Kbps
Fax Transmission Speed:
3 seconds (200 x 100 dpi, JBIG, ITUT #1 chart TTI off, memory transmission)
Memory:
Standard: 4 MB (approx. 320 pages)
Optional: 60 MB (approx. 4,800 pages) with optional SAF memory
Max Auto Dials:
2,000 Quick/Speed Dial numbers
Group Dials:
100 Group Dial numbers
